Configuration

If you have installed the supplement Product Configurator you will find information about the configured customer order or manufacturing order in the Conf. column. You will then will find the button in the column. This button is used to view configuration information in a separate window.

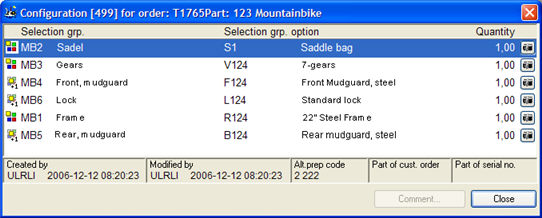

The window used to preview configured customer orders and manufacturing orders.

In the window you will see each selection group, part option and quantity. To the far right you will find a button that shows any images (for example .gif or .jpg) for each selection group option.

In the lower portion you will find information about the order. There you will see when and by whom the order was created, when and by whom the order was modified as well as the alternate preparation code from the configuration. You will see the customer order in which the configuration is included as well as the serial number, if any.

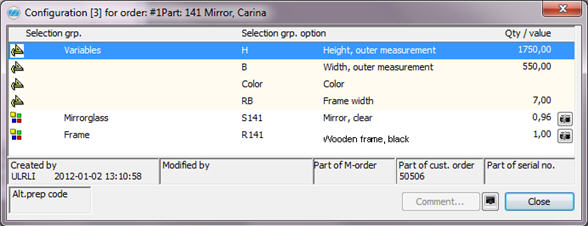

If variables are applied in the configuration, they will also be displayed. See the sample below:

Sample of a configuration with variables.

Please read more about the Product Configurator in the Using MONITOR Procedures guide.
